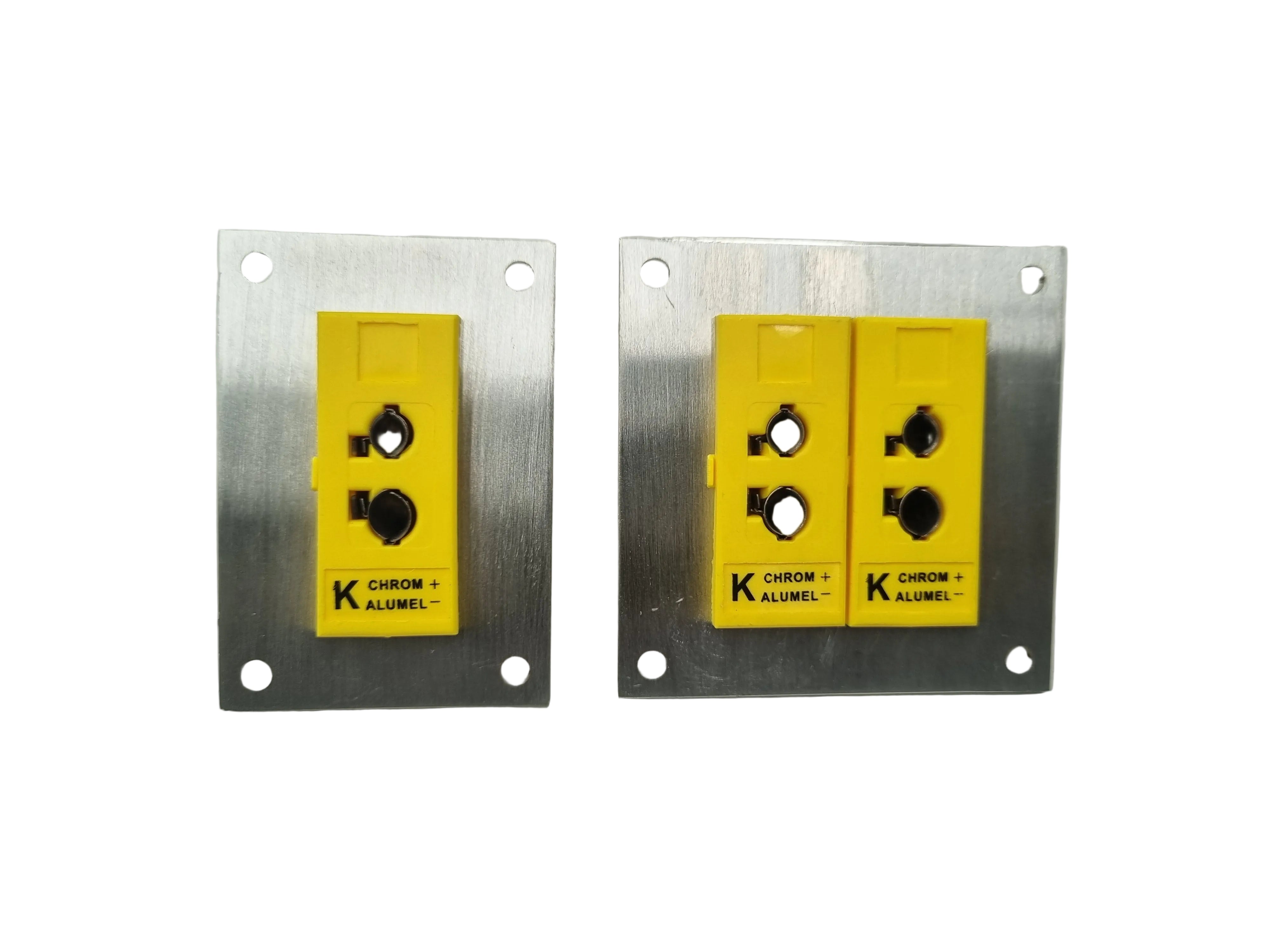

1, 2, 3, 4, 5 and 10 way panels with standard round pin connector sockets designed to be installed to your main panel. Panels are made from aluminum with mounting holes for easy install.

 The panels are supplied with the standard round pin connectors.

• Type : K standard round pin  connectors
• Panel material: Aluminum
• Mounting hole size: 4.2mm
• Panel Thickness: 3mm
  1 way channel size:  65mm high x 45mm wide
  2 way channel size:  65mm high x 64mm wide
  3 way channel size:  45mm high x 82mm wide
  4 way channel size:  45mm high x 92mm wide
  5 way channel size:  45mm high x 121mm wide
  10 way channel size:  45mm high x 222mm wide
