1, 2, 3, 4, 5 and 10 way panels with miniature connector sockets designed to be installed to your main panel. Panels are made from aluminum with mounting holes for easy install.

 The panels are supplied with the mini connectors.

• Type : K miniature connectors
• Panel material: Aluminum
• Mounting hole size: 4.2mm
• Panel Thickness: 3mm

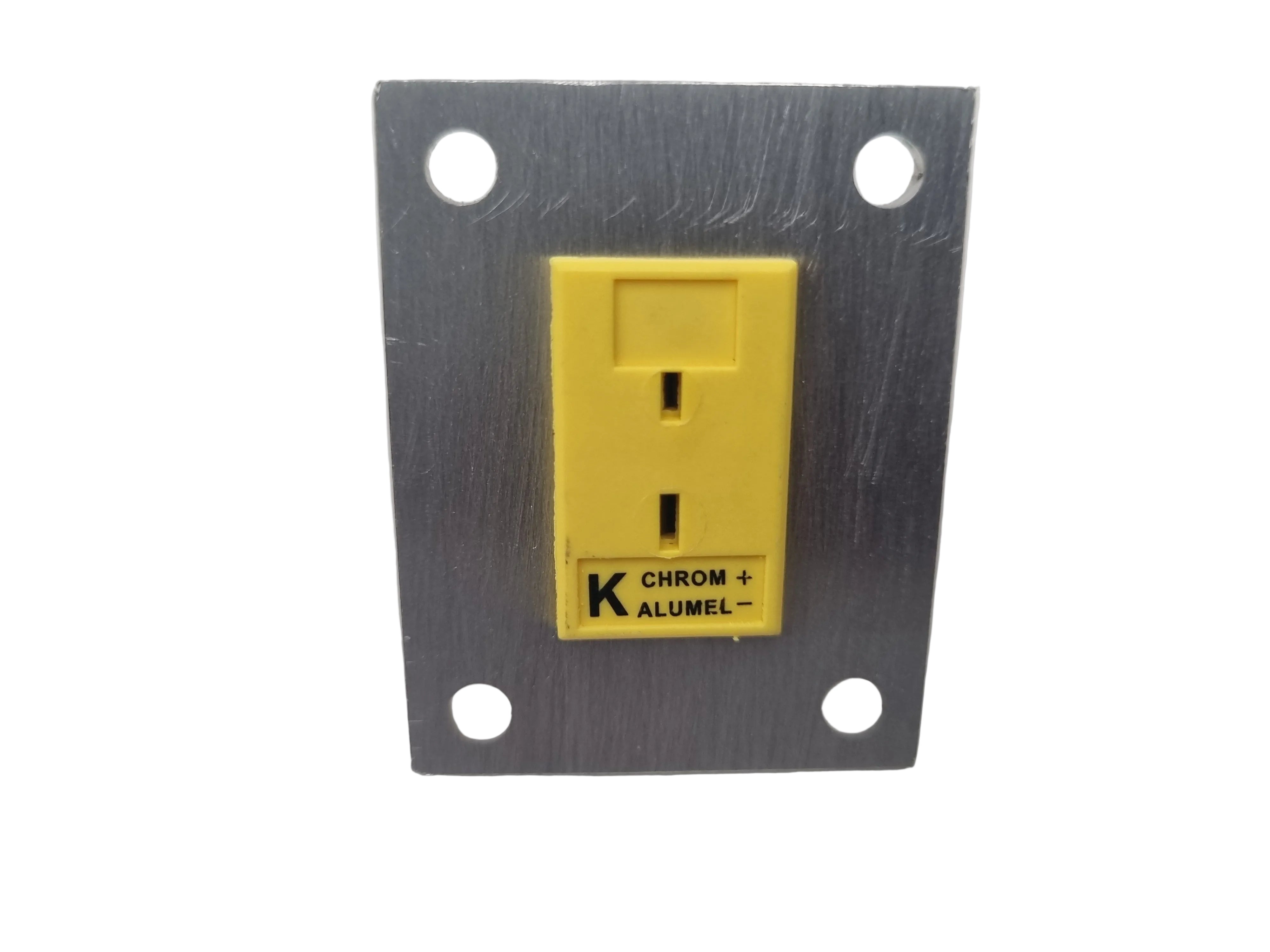

  1 way channel size:  45mm high x 35mm wide

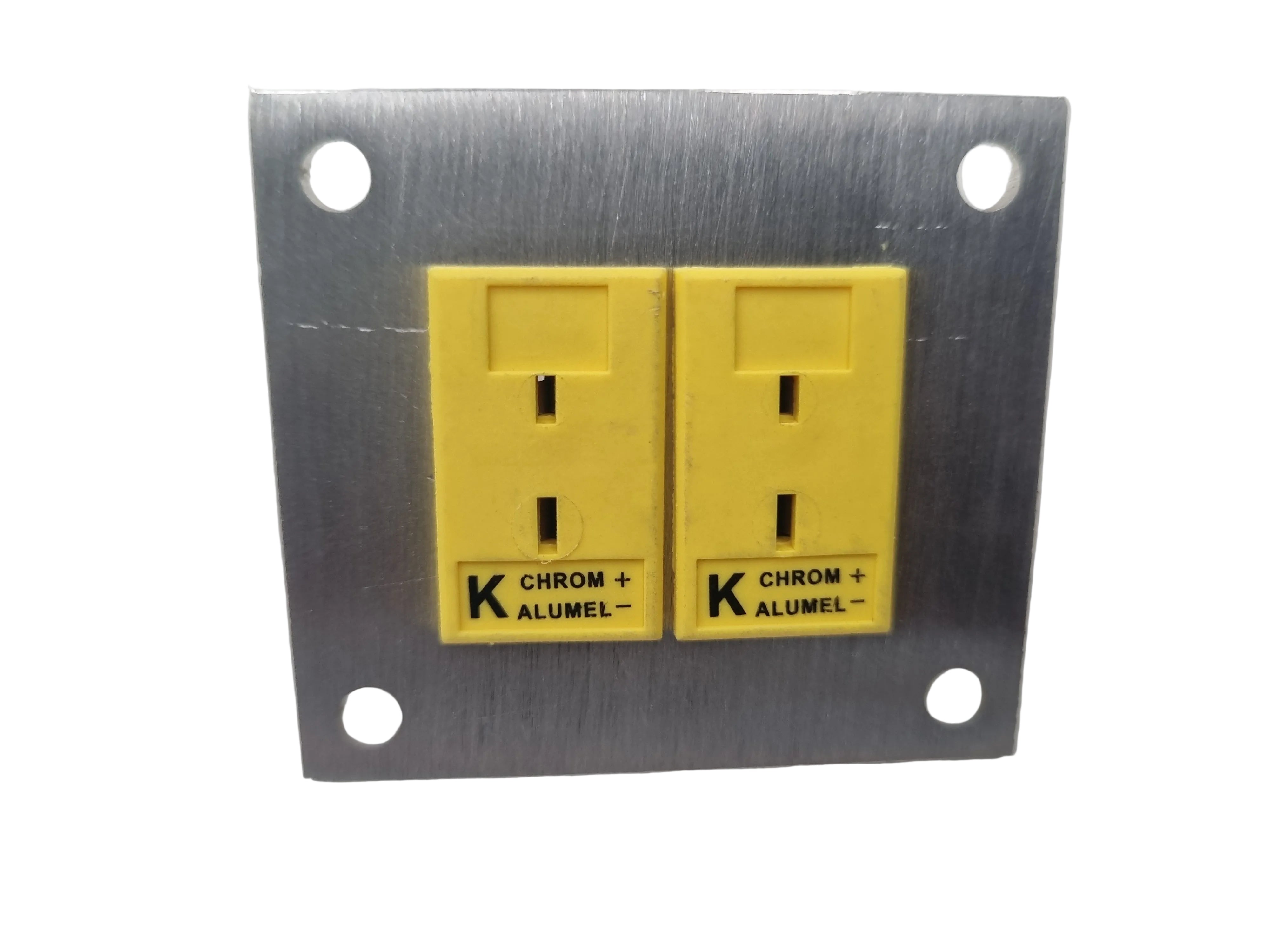

  2 way channel size:  45mm high x 50mm wide

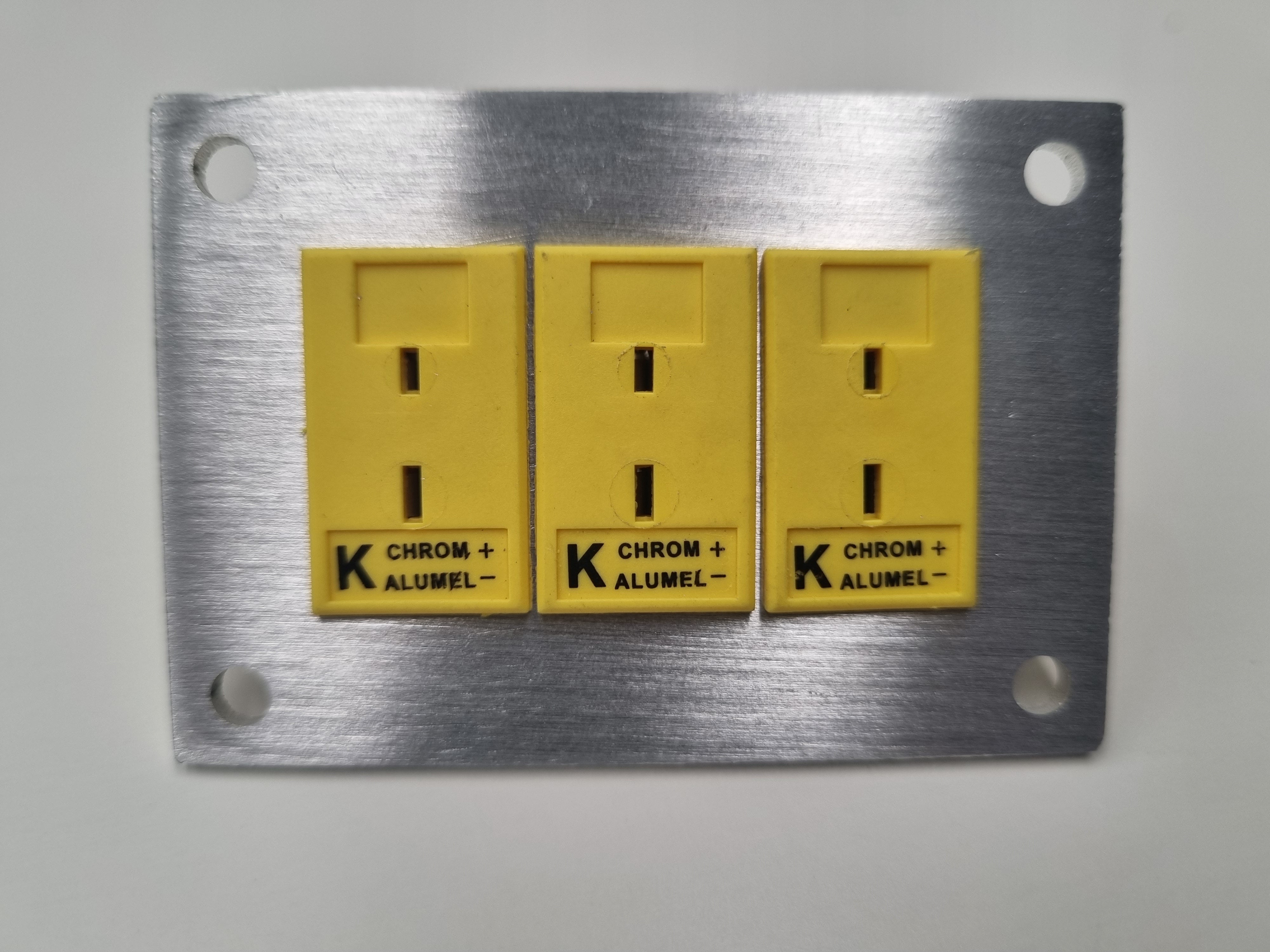

  3 way channel size:  45mm high x 65mm wide
  4 way channel size:  45mm high x 80mm wide
  5 way channel size:  45mm high x 95mm wide
  10 way channel size:  45mm high x 170mm wide
