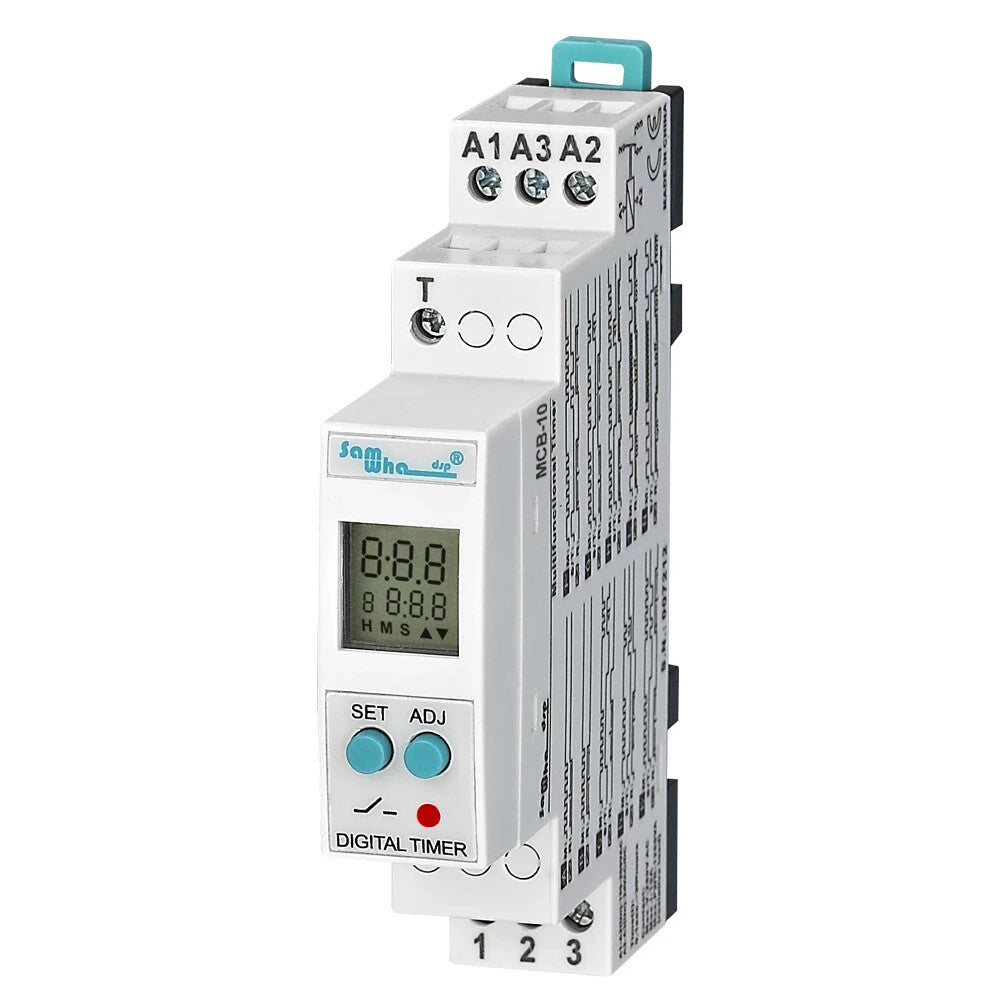

This Multi-Function timer relay has relay contact, compact equipment with high precision.
It performs the multi timer in the range of 0.1 seconds to 999hrs.
This timer relay is easy to use and quick to configure.
Both ON delay and OFF delay settings
- Supply voltage: 12V ~ 240VAC/DC
- Number of contacts: 1 changeover contact SPDT
- Current rating: 5 Amps
- Mounting: Din rail
- Size: 23mm (W) X 90mm (H)
Multi function settings :
- A: A pulse after power-on or after the rising edge of trigger pulse S.
- B: Delay after power-on or after the rising edge of trigger pulse S.
- C: A pulse after power-on or after the rising edge of trigger pulse S. Retriggerable.
- D: Delay after power-on or after the rising edge of trigger pulse S. Retriggerable.
- E: The first edge of trigger pulse S turns relay on while the second edge starts counting down till relay off. Additional trigger S before the process is finished prolongs the on-state.
- F: Each rising edge of trigger S appends additional period T to the time of on-state.
- G: Pulsating operating with a starting pulse or pause which depends on the state of trigger S at power-on.
- H: Bi stable operating. Each rising edge of trigger S swaps the relay into the opposite state.
- I: Prolonged pulse after power-on. The presence of trigger S temporarily stops counting.
- J: Prolonged pause after power-on. The presence of trigger S temporarily stops counting.
