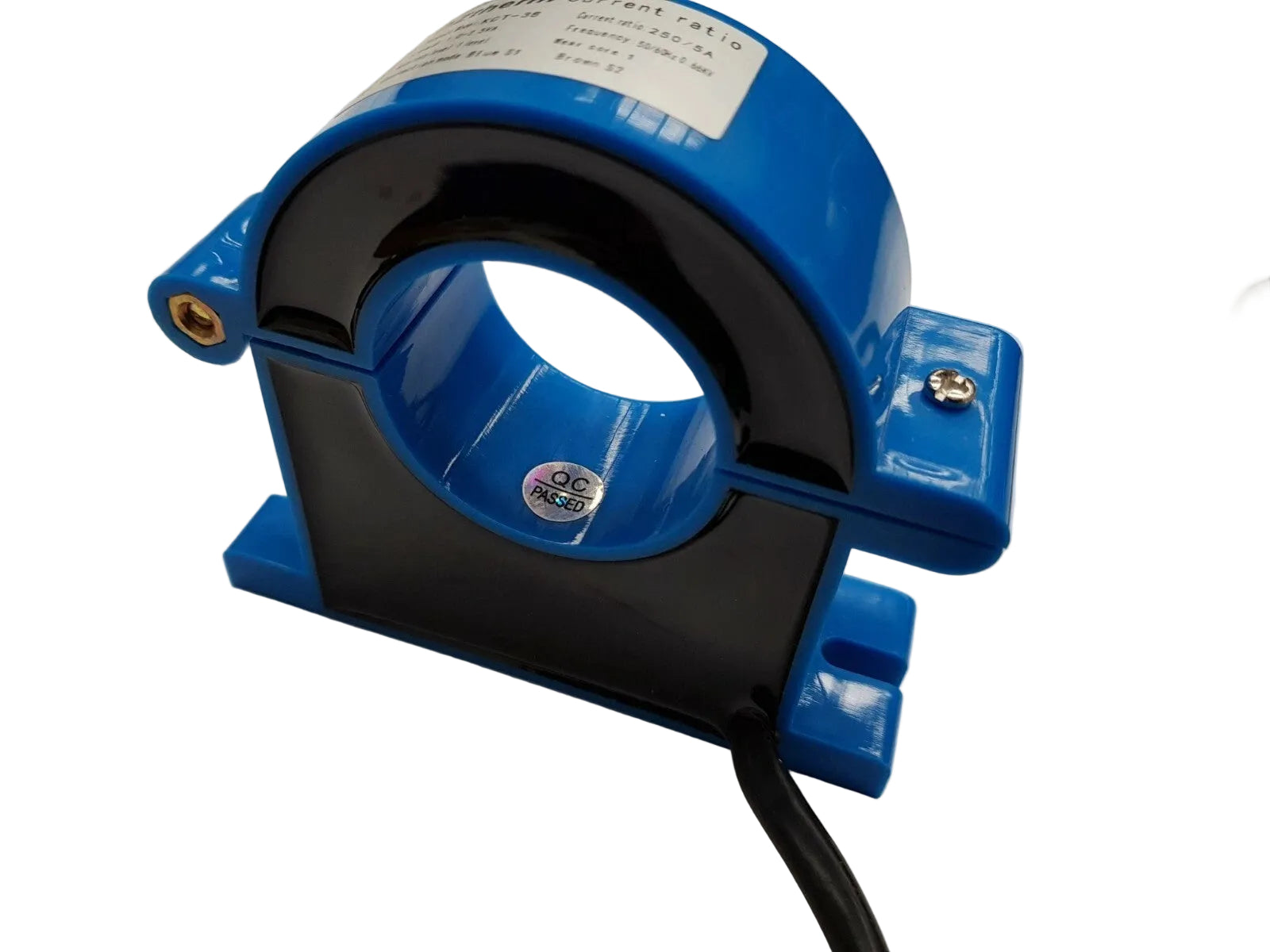

Split current transformers with unique clip-together feature enabling high speed permanent installation.
Can be installed into existing networks without disconnecting cables or busbars.
We have other sizes up to 1000A available. Also in stock are DC LEM hall effect sensors.
| Bore Size | 37mm |
| Transformer Type | Split core |
| Input Current | 100A , 150A , 200A , 250A , 300A , 400A |
| Output Current | 5 A |
| Overall Height | 86mm |
| Overall Width | 96mm |
| Overall Depth | 30mm |
| Minimum Temperature | -30°C |
| Maximum Temperature | +85°C |
| Type | Class 1.0 / 2.5Va |
| Mounting Type | Base Mounted |
