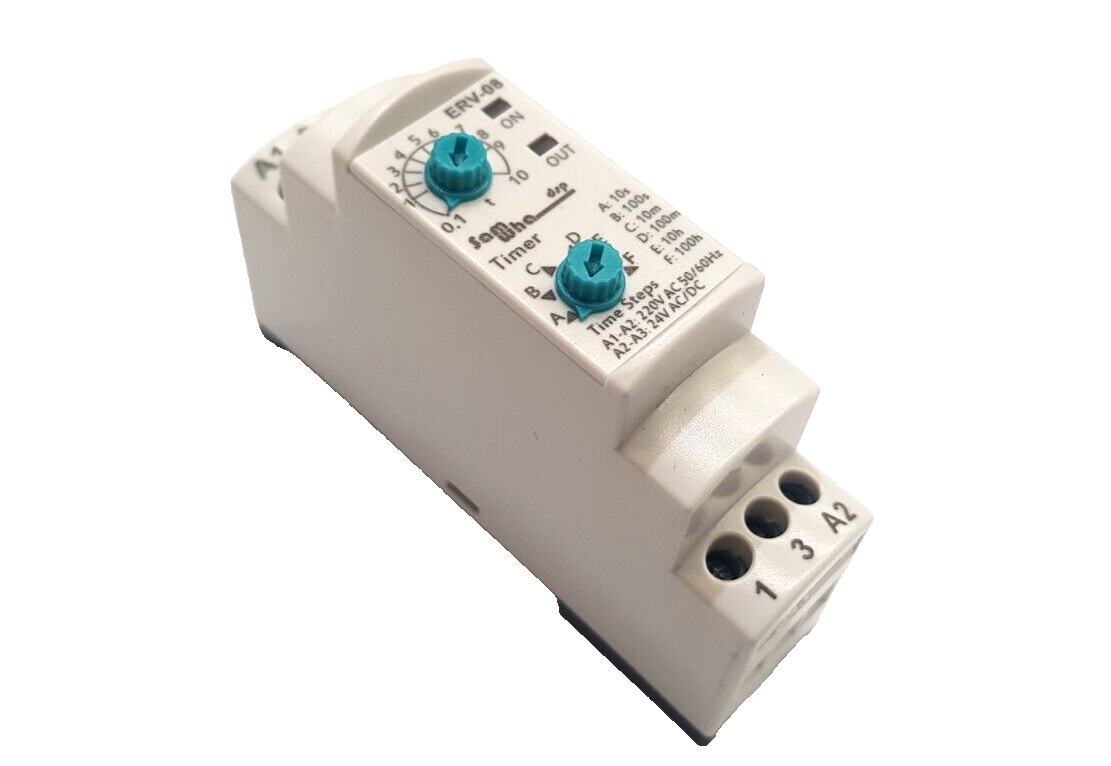

This Multi-setting timer relay has relay contact, compact equipment with high precision.
It performs the function of providing ON delay in the range of 0.1 seconds to 100 hours.
This timer relay is easy to use and quick to configure.
- Supply voltage: 220Vac ~ 240Vac, 24Vdc
- Time range: 10sec, 100sec, 10min, 100min, 10hrs, 100hrs
- Mode of operation: On delay
- Number of contacts: 1 changeover contact SPDT
- Current rating: 5 Amps
- Mounting: Din rail
- Size: 23mm (W) X 90mm (H)
