IDEAL FOR MOUNTING FOR FULLY ENCLOSED TANKS/CONTAINERS.
CAN BE USED FOR SWITCHING PUMP OR MONITORING WATER LEVEL IN A TANK,AQUARIUM ,PONDS, ETC.
- SWITCHING VOLTAGE: 12VDC/24VDC and up to 100VAC
- CURRENT RATING: MAX. 500mA (resistive load)
- CONTACT TYPE: NORMALLY CLOSE (floater not touching liquid)
(THE CONTACT OPERATION CAN BE NORMALLY OPEN BY INVERTING THE FLOATER) - MOUNTING THREAD SIZE: 10mm

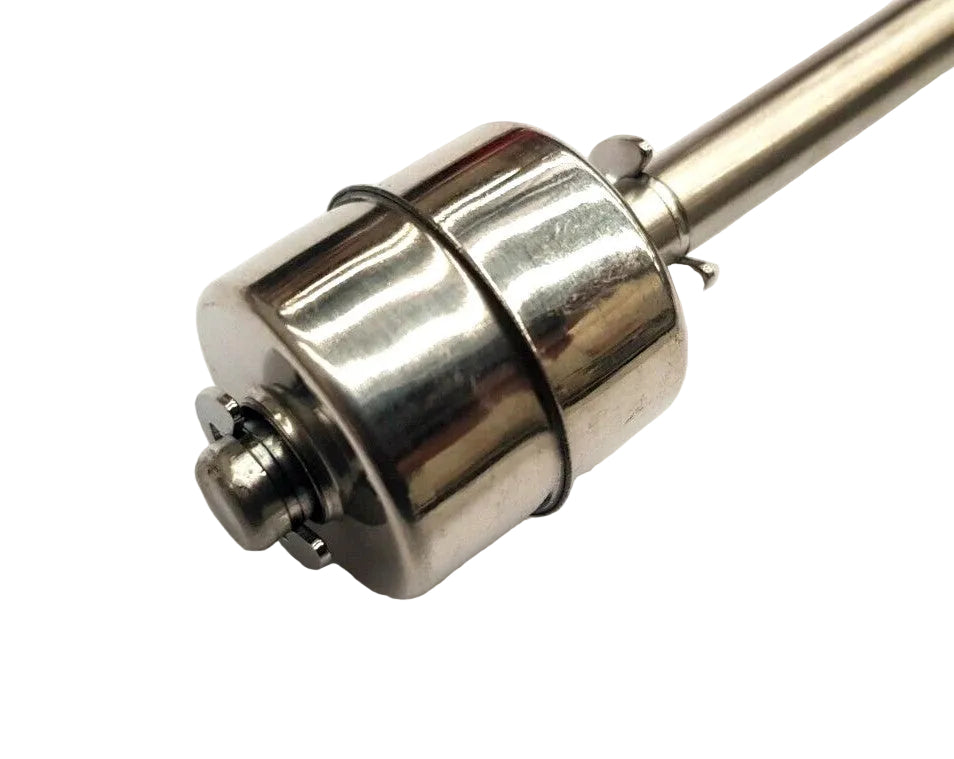

- FLOATER SIZE: 28(DIA)X 26mm (LENGTH)
- SWITCH LENGTH: 60mm, 90mm, 120mm, 150mm, 200mm, 250mm, 300mm
- FLOATER TRAVEL DISTANCE FOR ACTIVATION: 10mm
- CABLE LENGTH: 300mm
- OPERATING TEMPERATURE: -10 ~ 70deg C
- MATERIAL: 304 Stainless steel

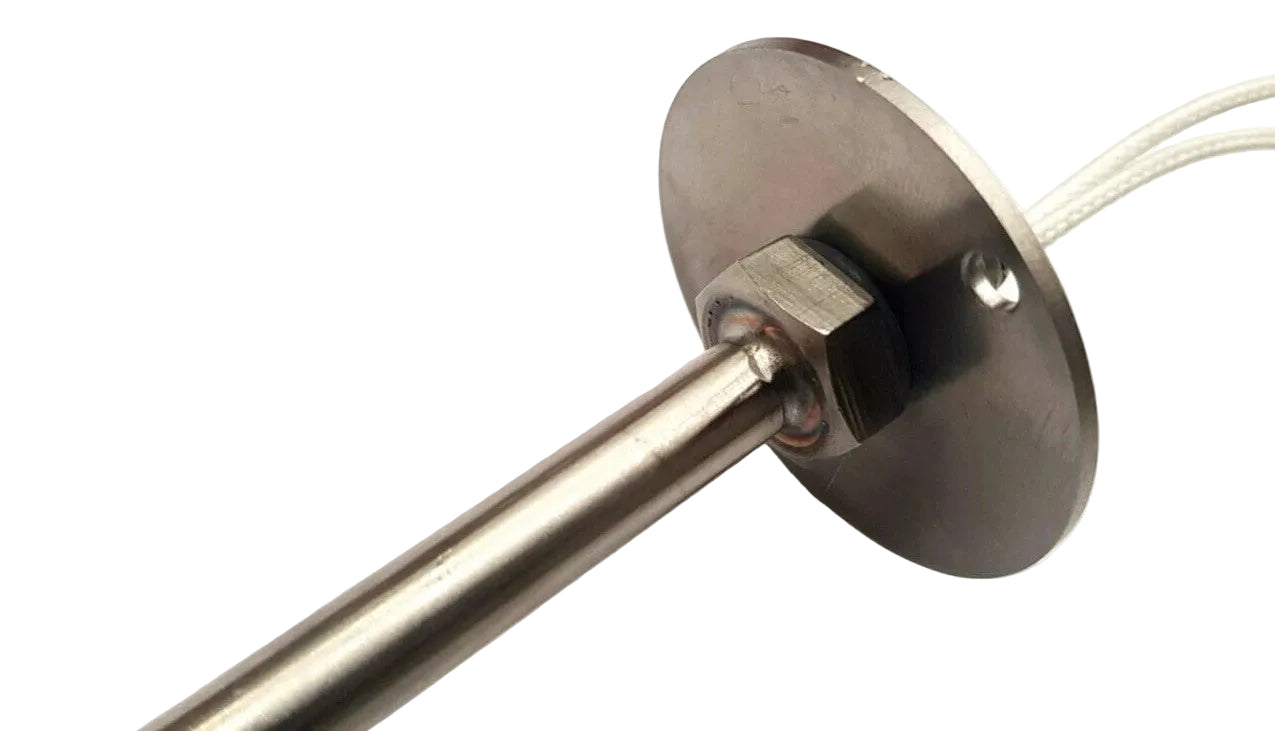

- FLANGE DIAMETER: 50mm
COMES WITH LOCK NUT AND RUBBER SEAL
Note this float switches are not designed to control a pump or a valve directly.
Please use an auxiliary relay or a contactor to switch the load
