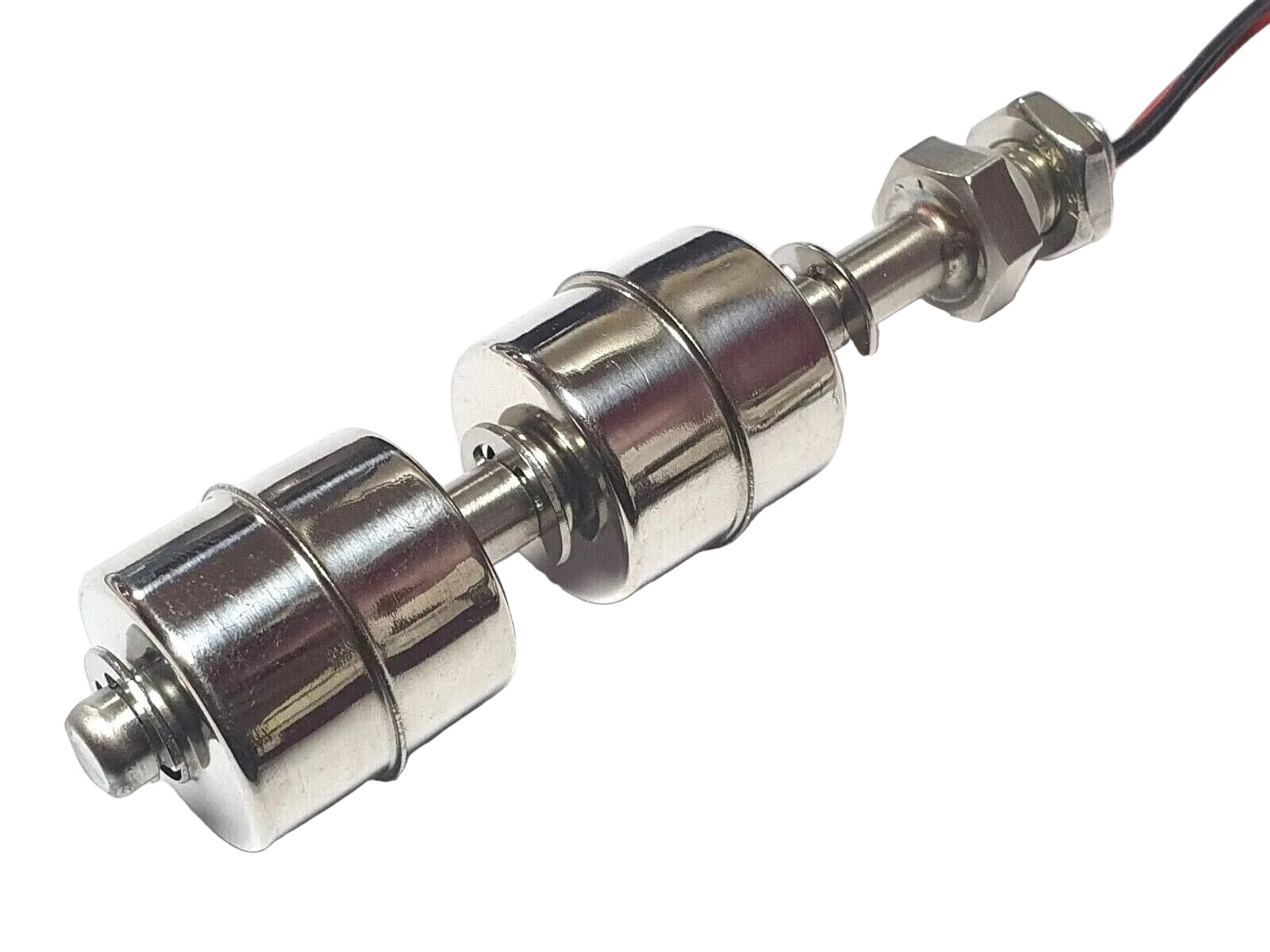

CAN BE USED FOR SWITCHING PUMP OR MONITORING WATER LEVEL IN A TANKS, AQUARIUM, PONDS, ETC
- SWITCHING VOLTAGE: 12VDC/24VDC and up to 100VAC
- CURRENT RATING: MAX. 500mA (resistive load)
- CONTACT TYPE: Normally close (floater not touching liquid)
- (The contact operation can be normally open by inverting the float balls)
- MOUNTING THREAD SIZE: 10mm
- FLOATER SIZE: 28(DIA)X 26mm(length)
- SWITCH LENGTH: 100mm, 150mm, 200mm, 250mm, 300mm
DISTANCE BETWEEN FLOATS:
100mm length - 10mm
150mm length - 60mm
200mm length - 110mm
250mm length - 160mm
300mm length - 200mm
CABLE LENGTH: 300mm
OPERATING TEMPERATURE: -10 ~ 70deg C
MATERIAL: 304 Stainless steel

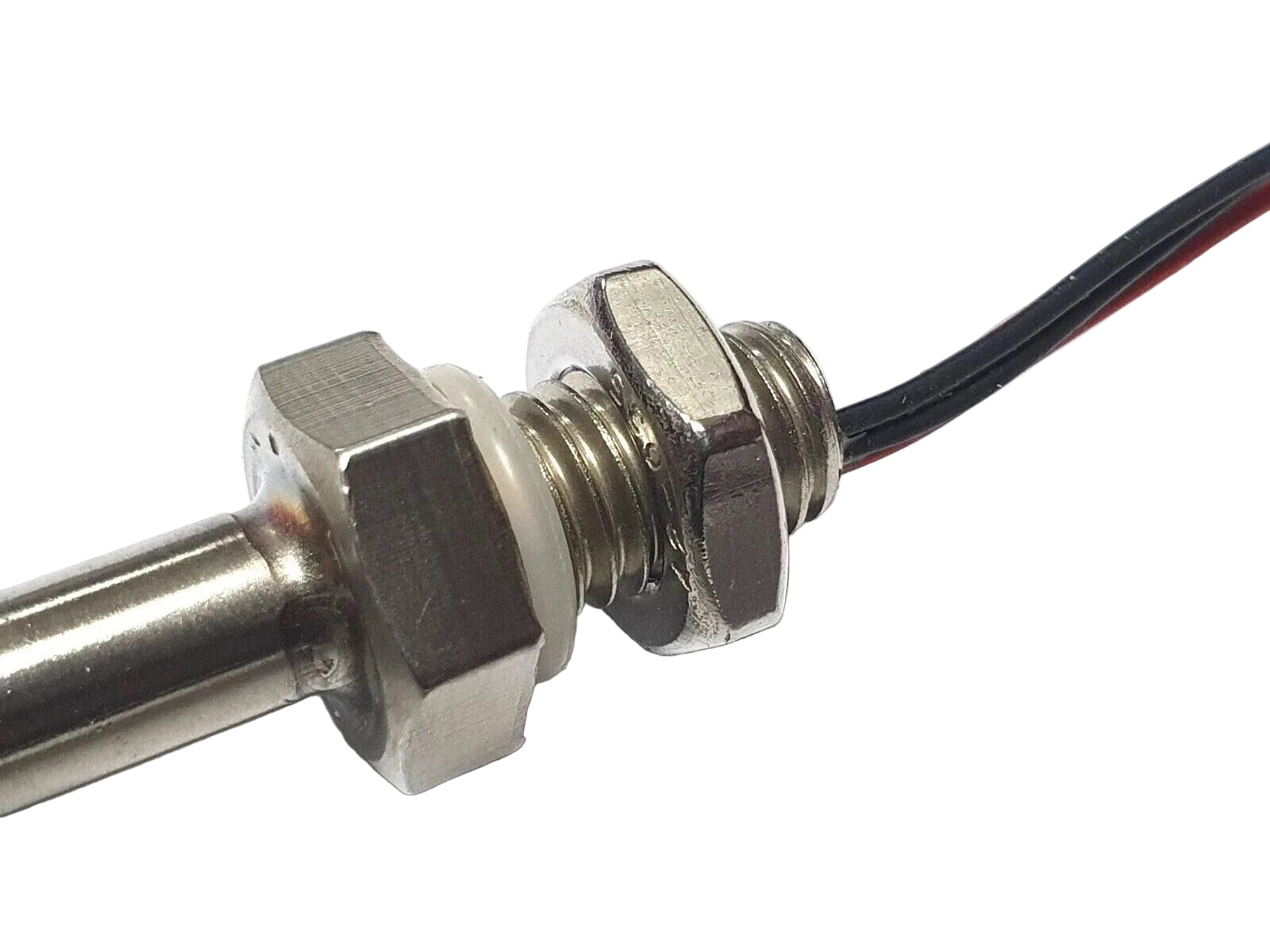

Includes lock nut and rubber seal.
Note this float switches are not designed to control a pump or a valve directly.
Please use an auxiliary relay or a contactor to switch the load.
